Advancements in Ceramic Material Science—Enhanced Toughness through Valence Electron Manipulation

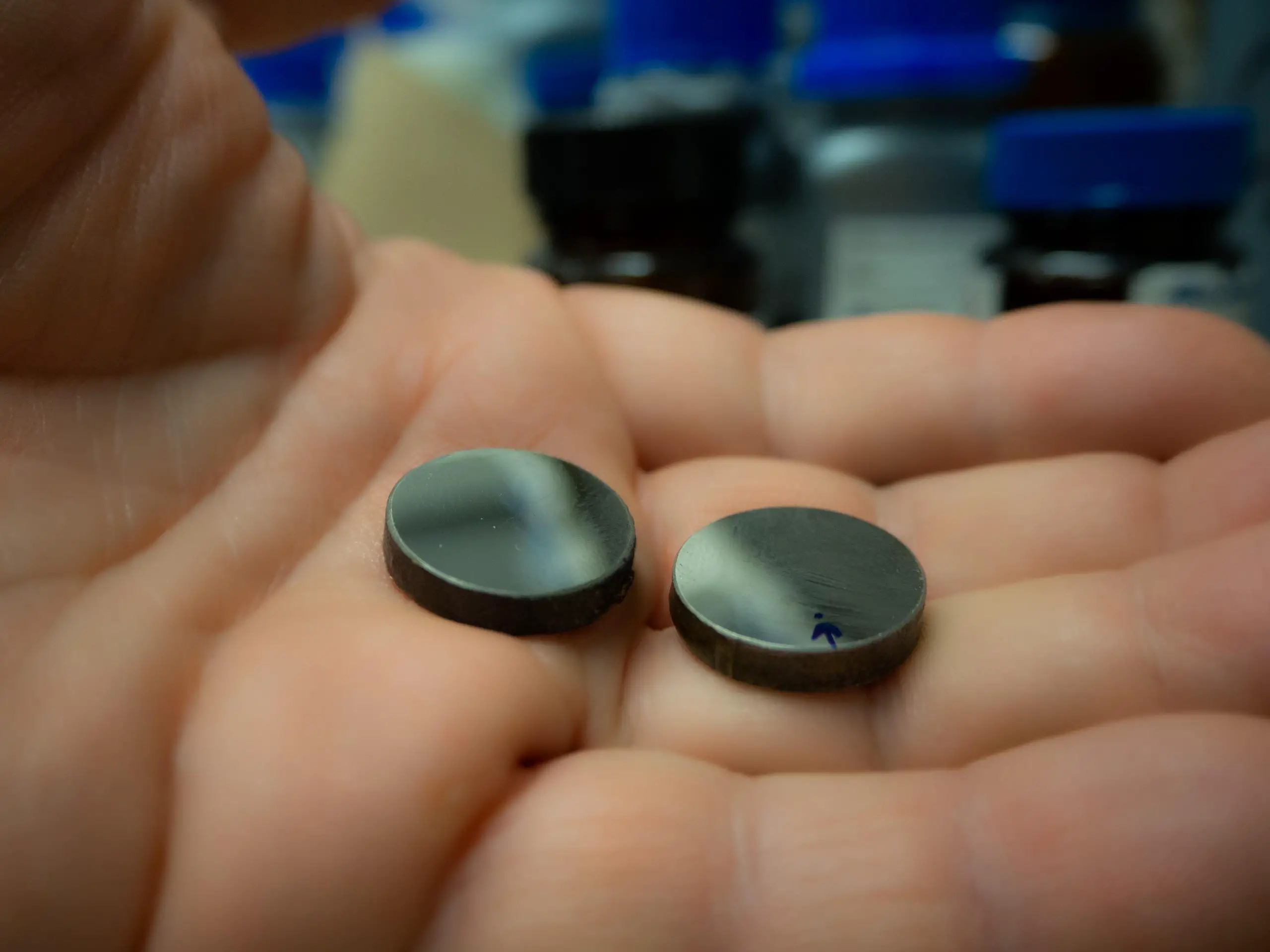

Photo Credit: Liezel Labios/UC San Diego Jacobs School of Engineering

A team of researchers, primarily from the University of California San Diego, has discovered a technique to significantly enhance the resilience and crack-resistance of ceramics. By constructing these ceramics with a blend of metal atoms that possess a greater number of valence electrons in their outer shells, these scientists have succeeded in elevating the material’s ability to withstand greater mechanical stress and force.

Table of Contents

Properties and Shortcomings of Traditional Ceramics

Ceramics are noteworthy for their exceptional characteristics, such as their capability to endure extremely high temperatures, resist surface wear and corrosion, and maintain a lightweight structure. These features render them invaluable for an array of uses including, but not limited to, aerospace components and protective layers for machinery and cutting instruments. Despite these advantages, ceramics have been hindered by their inherent brittleness, making them susceptible to failure under stress.

However, a recent publication in the journal Science Advances suggests that a breakthrough has been achieved, making ceramics less prone to breaking.

Enhanced Resilience through Valence Electron Concentration

Headed by Kenneth Vecchio, a professor of nanoengineering at UC San Diego, the study focused on a specific category of ceramics termed high-entropy carbides. These are characterized by highly disordered atomic configurations that consist of carbon atoms coupled with multiple metal elements from columns four to six of the periodic table, including but not limited to titanium, niobium, and tungsten. The pivotal aspect for increasing ceramic resilience was identified as the incorporation of metals from the fifth and sixth columns of the periodic table, which have higher counts of valence electrons.

Valence electrons—the electrons in the outermost shell of an atom that partake in bonding—are instrumental in this development. Utilizing metals with a greater count of valence electrons resulted in ceramics that demonstrated augmented resistance to mechanical stress and fracturing. Vecchio stated, “The additional electrons contribute to the material’s ductility, allowing it to deform more before reaching the point of failure, much like metals.”

Empirical and Computational Analysis

In collaboration with Davide Sangiovanni, a professor of theoretical physics at Linköping University in Sweden, Vecchio’s team undertook both computational simulations and experimental validations of these high-entropy carbides. They studied different combinations of metal elements, each contributing to a unique concentration of valence electrons within the material.

Identifying Optimal Material Combinations

Two specific high-entropy carbides were identified as showing extraordinary resistance to mechanical stress and fracturing due to their high valence electron concentrations. One was comprised of vanadium, niobium, tantalum, molybdenum, and tungsten, while the other substituted chromium for niobium. These materials demonstrated metallic-like behavior under mechanical stress, undergoing deformation without fracturing. This was attributed to a nanoscale mechanism wherein additional valence electrons formed new atomic bonds, preventing the expansion of microscopic openings into cracks.

Kevin Kaufmann, a study co-author and UC San Diego nanoengineering Ph.D. alumnus, noted, “Rather than simply breaking, the material displays a slow fraying behavior similar to that of a rope, allowing it to withstand ongoing deformation and not fail in a brittle manner.”

Applications and Prospects for the Future

The next challenge is to scale the production of these newly-developed ceramics for commercial implementation. This could revolutionize sectors dependent on high-performance ceramics, including aerospace and biomedical applications. Enhanced toughness also suggests these ceramics could be used in extreme conditions, such as the leading edges of hypersonic vehicles.

Vecchio concluded, “By overcoming a long-standing drawback of ceramics, we open the door to a wide range of uses and next-generation materials that hold transformative potential for society.”

Reference: “Valence electron concentration as key parameter to control the fracture resistance of refractory high-entropy carbides” by Davide G. Sangiovanni, Kevin Kaufmann and Kenneth Vecchio, published on 13 September 2023 in Science Advances. DOI: 10.1126/sciadv.adi2960

Support for this research was provided by the Swedish Research Council (grants VR-2018-05973 and VR-2021-04426), Competence Center Functional Nanoscale Materials (grant 2022-03071), Olle Engkvist Foundation, UC San Diego Department of NanoEngineering’s Materials Research Center, National Defense Science and Engineering Graduate Fellowship Program, ARCS Foundation (San Diego Chapter), and The Oerlikon Group.

Frequently Asked Questions (FAQs) about Ceramic Toughness

What is the primary focus of the research conducted by the University of California San Diego?

The research primarily aims to enhance the toughness and crack-resistance of ceramics. By using a blend of metal atoms with a higher count of valence electrons in their outer shells, the team has succeeded in making ceramics that can withstand greater mechanical stress and force.

What are high-entropy carbides?

High-entropy carbides are a class of ceramics characterized by highly disordered atomic structures. These structures consist of carbon atoms bonded with multiple metal elements from columns four to six of the periodic table, including metals like titanium, niobium, and tungsten.

How do valence electrons contribute to the enhanced toughness of ceramics?

Valence electrons, which reside in an atom’s outermost shell and engage in bonding with other atoms, have been found to be instrumental in enhancing ceramic toughness. Utilizing metals with higher counts of valence electrons results in ceramics demonstrating increased resistance to mechanical load and stress.

What applications can benefit from these tougher ceramics?

The newly-developed ceramics have the potential for a wide array of applications, including aerospace components, protective layers for machinery and cutting tools, and potentially even biomedical implants. Their enhanced toughness also suggests they could be used in extreme conditions, such as the leading edges of hypersonic vehicles.

Who collaborated on this research project?

The research project was led by Kenneth Vecchio, a professor of nanoengineering at the University of California San Diego. The team also collaborated with Davide Sangiovanni, a professor of theoretical physics at Linköping University in Sweden, for computational simulations.

What are the next steps for this research?

The immediate challenge lies in scaling up the production of these newly-developed tough ceramics for commercial applications. This could revolutionize various sectors that rely on high-performance ceramics and pave the way for their use in a broader range of extreme conditions.

What sources of funding supported this research?

The research was supported by multiple grants and organizations, including the Swedish Research Council, Competence Center Functional Nanoscale Materials, Olle Engkvist Foundation, UC San Diego Department of NanoEngineering’s Materials Research Center, National Defense Science and Engineering Graduate Fellowship Program, ARCS Foundation (San Diego Chapter), and The Oerlikon Group.
