Nanoscale Cooling via Charge-Selective Ion Movement

by François Dupont
Nanopore Cooling

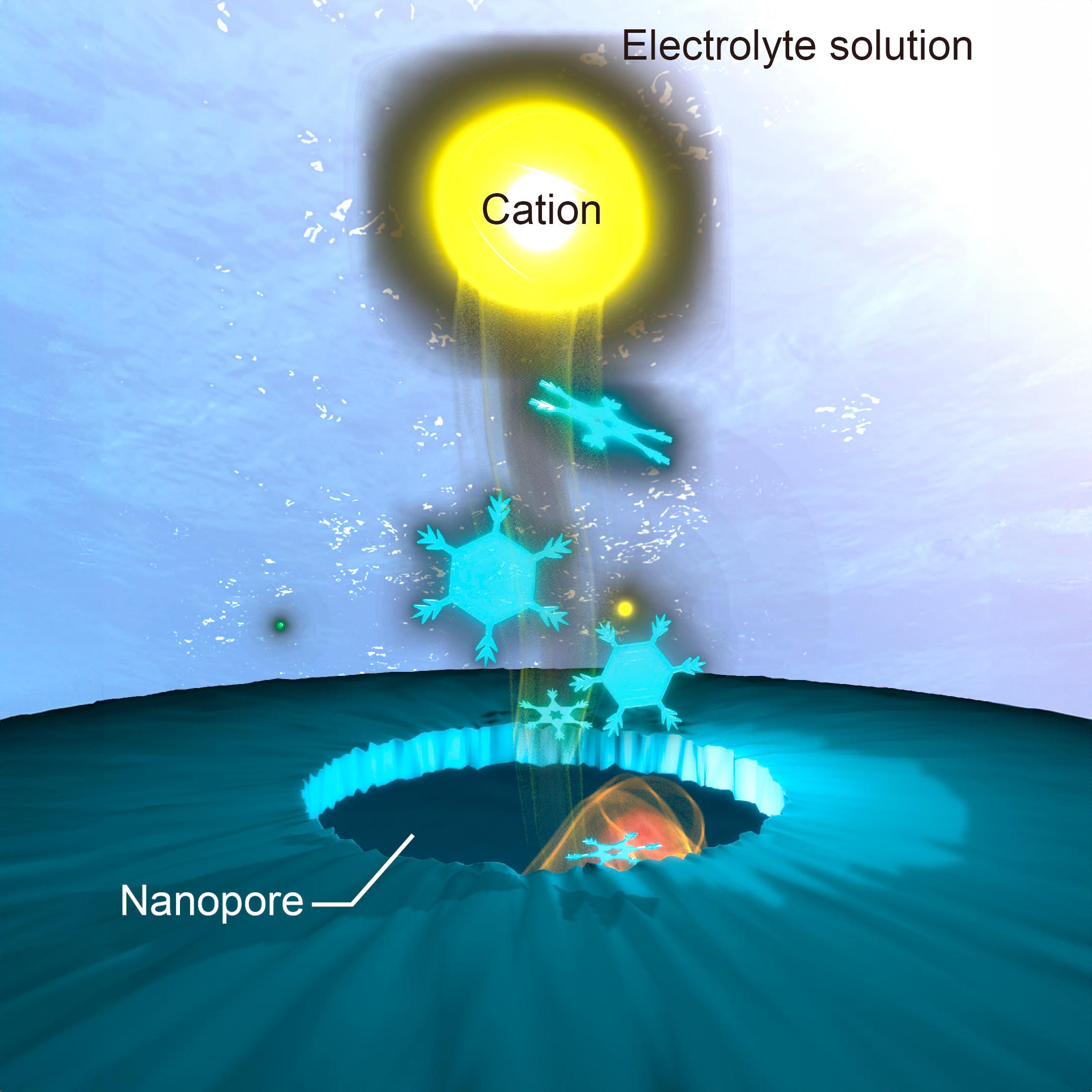

Graphical representation of cooling through nanopore technology, facilitated by selective ion movement. Attribution: Tsutsui et al., 2023, “Peltier Cooling in Nanofluidic Applications,” Device, revised edition.

A pioneering research conducted in Japan introduces a novel method for temperature regulation in microfluidic devices through nanopore technology, offering new insights into the mechanisms of cellular ion channels.

Consider the process of boiling water in an electric kettle. Commonly, it’s believed that electricity heats the coil, which then warms the water. However, electricity’s role extends beyond this. Heat is also produced when electrically-induced ion movement occurs in a solution. Normally, when ions and molecules move without restriction, the heating effect is distributed throughout the solution. Japanese scientists have explored the effects of restricting this ionic movement in one direction.

Cooling via Nanopore Mechanism

Published in Device, a study by Osaka University’s SANKEN (The Institute of Scientific and Industrial Research) reveals that cooling can be achieved using a nanopore—a minuscule opening in a membrane—allowing selective ion passage.

Typically, electrically driven ions in solutions cause positive and negative ions to move in different directions, resulting in bidirectional heat energy transfer.

Regulating Ionic Movement for Temperature Control

If a membrane with just a nanopore blocks the ions’ path, control over their flow becomes possible. For instance, if the nanopore is negatively charged, negative ions might interact with the pore instead of passing through, leaving only positive ions to move through, carrying their energy away.

“At high ion concentrations, we observed a temperature rise with increasing electrical power,” notes lead researcher Makusu Tsutsui. “However, at lower concentrations, the negative ions engaged with the charged wall of the nanopore, allowing only positive ions through, which resulted in a temperature drop.”

Microfluidics and Cellular Biology Applications

The demonstrated ionic cooling has potential applications in microfluidic systems, which are used in various fields from microelectronics to nanomedicine for handling small liquid volumes. Additionally, this research could advance our understanding of cellular ion channels, which are vital in cellular mechanisms and could lead to breakthroughs in comprehending diseases and developing treatments.

Wider Impact and Future Developments

“Our research has a wide range of possible implications,” states senior researcher Tomoji Kawai. “There’s significant potential for customizing nanopore materials for specific cooling needs. Moreover, creating arrays of nanopores could enhance this effect.”

The implications of this research are vast, including the possibility of using temperature differences to generate electric potential, applicable in temperature detection or blue energy harvesting.

Reference: Tsutsui, M., Yokota, K., Hsu, W. L., Garoli, D., Daiguji, H., & Kawai, T. (2023). Peltier Cooling for Thermal Management in Nanofluidic Devices. Device, DOI: 10.1016/j.device.2023.100188.

Frequently Asked Questions (FAQs) about Nanopore Cooling

What is the main focus of the recent study by Japanese researchers?

The study focuses on a new method of cooling in microfluidic systems using nanopore technology, which involves selective ion transport through a tiny hole in a membrane. This approach not only revolutionizes temperature control in these systems but also provides deeper insights into the workings of cellular ion channels.

How does nanopore technology contribute to cooling in microfluidic systems?

Nanopore technology uses a very small opening in a membrane to selectively allow certain ions to pass through. This selective ion transport can lead to a decrease in temperature, particularly when the flow of ions is controlled in a specific way, such as allowing only positively charged ions to pass through a negatively charged nanopore.

What are the potential applications of this nanopore-based cooling method?

The cooling method demonstrated has significant applications in microfluidic systems, which are critical in various fields like microelectronics and nanomedicine. Additionally, the findings from this study could enhance the understanding of ion channels in cellular biology, potentially impacting disease comprehension and treatment development.

How does the nanopore cooling process differ at high and low ion concentrations?

At high ion concentrations, an increase in temperature was observed as the electrical power was increased. In contrast, at low ion concentrations, the available negative ions interacted with the negatively charged nanopore wall, allowing only positively charged ions to pass through, which led to a decrease in temperature.

What are the broader implications and future prospects of this research?

The research opens up numerous possibilities, including the customization of nanopore materials for specific cooling needs and the creation of nanopore arrays to amplify the cooling effect. The findings could also lead to new developments in using temperature gradients for generating electric potential, with applications in temperature sensing and blue energy harvesting.
