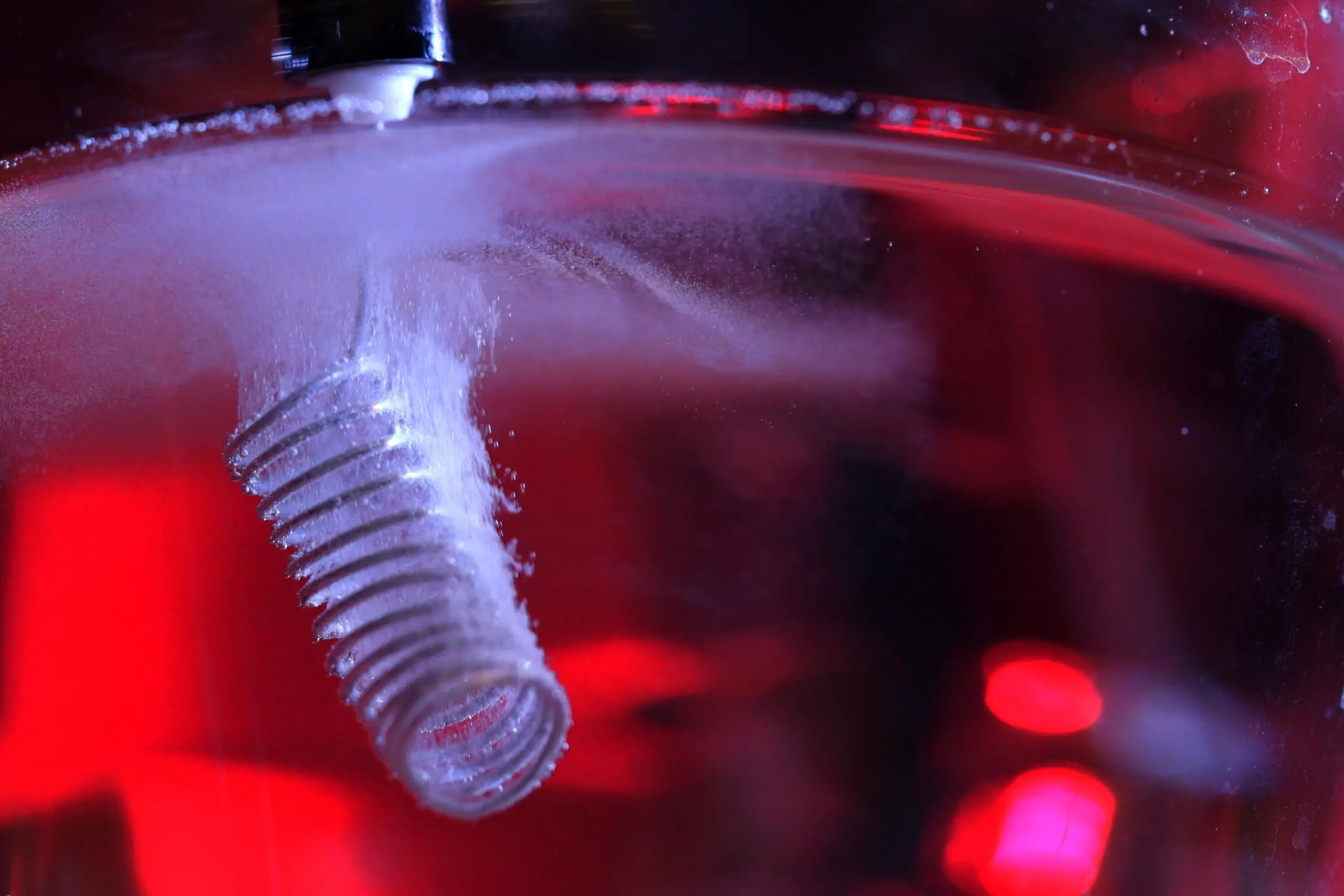

Researchers have discovered a unified electrochemical method for the simultaneous capture and conversion of carbon dioxide. This method utilizes an electrode, seen in images as covered with bubbles, that attracts carbon dioxide released from a sorbent material and transforms it into carbon-neutral products. Credit: John Freidah/MIT MechE
This breakthrough, rooted in a solitary electrochemical procedure, could significantly reduce emissions from industries that are particularly difficult to decarbonize, including steel and cement production sectors.
In a global push to mitigate greenhouse gas emissions, MIT scientists are honing in on carbon capture technologies tailored to some of the most stubborn industrial polluters.
Certain industries like steel, cement, and chemical manufacturing are especially challenging to decarbonize due to the intrinsic use of carbon and fossil fuels in their processes. If advancements can be made to not only capture but also repurpose carbon emissions within these production cycles, it could result in marked reductions in emissions from these notoriously difficult-to-abate sectors.
Existing experimental technologies for carbon dioxide capture and conversion operate as two distinct, energy-intensive processes. The MIT researchers aim to integrate these processes into a singular, more energy-efficient system that could ideally be powered by renewable energy sources, and thus capture and convert carbon dioxide emissions from concentrated industrial settings.
Table of Contents
Recent Insights into Carbon Capture and Conversion
In a paper published on September 5 in the journal ACS Catalysis, the researchers elucidate the complex mechanisms through which carbon dioxide can be simultaneously captured and converted in a single electrochemical process. The technique involves the use of an electrode to attract carbon dioxide, which is released from a sorbent material, and then convert it into a reusable form.
While similar initiatives have been reported, the electrochemical reactions driving these processes have remained elusive. To uncover these mechanisms, the MIT team performed comprehensive experiments and concluded that the efficiency of the electrode is influenced by the partial pressure of the carbon dioxide; the purer the carbon dioxide that contacts the electrode, the more efficient the capture and conversion process.
This discovery about the primary driver or “active species” could guide future adjustments to similar electrochemical systems for efficient, integrated carbon dioxide capture and conversion.
The research suggests that although these systems may not be effective for capturing and converting dilute carbon emissions directly from the atmosphere, they could be very effective for capturing and converting emissions from high-concentration industrial processes, especially those without apparent renewable alternatives.
“Transitioning to renewable energy for electricity is attainable, but thorough decarbonization of sectors like cement and steel is more complex and will take more time,” remarks study author Betar Gallant, the Class of 1922 Career Development Associate Professor at MIT. “Even if we phase out all power plants, interim solutions are needed for emissions from other sectors. Our system fits well in this niche.”
Co-authors of the MIT study include lead author and postdoc Graham Leverick, graduate student Elizabeth Bernhardt, as well as Aisyah Illyani Ismail, Jun Hui Law, Arif Arifutzzaman, and Mohamed Kheireddine Aroua of Sunway University in Malaysia.
Understanding the Carbon Capture Mechanism
Carbon capture technology is generally engineered to trap emissions, known as “flue gas,” emanating from power plants and industrial operations. This usually involves large retrofit installations that channel these emissions into chambers containing a “capture” solution—a blend of ammonia-based compounds that chemically bond with carbon dioxide. This captured form of carbon dioxide can then be segregated and subjected to high temperatures, usually generated by fossil-fuel-powered steam, to be released in its pure form. Subsequently, this gas can be stored in various ways or converted into chemicals or fuels.
“Though carbon capture is a mature technology, it demands substantial installations and is costly and energy-consuming,” notes Gallant. “We seek more modular and versatile technologies, adaptable to diverse carbon dioxide sources. Electrochemical systems could provide this flexibility.”
Gallant’s team is working on an electrochemical system that recovers the captured carbon dioxide and converts it into a usable product. This integrated system could be entirely powered by renewable electricity.
The electrode at the center of their concept interacts with existing carbon-capture solutions. When voltage is applied, electrons flow onto the reactive form of carbon dioxide and convert it into a product using protons from water. This process frees the sorbent to capture more carbon dioxide without the need for steam.
Role of Independent CO2 Molecules
In this new study, the MIT team examined the specific reactions that drive this electrochemical process. Through rigorous testing, they found that the crucial factor was not the type of ammonia-based compound used in the capture solution, but rather the concentration of independent, non-bonded carbon dioxide molecules present. This “solo-CO2” was found to be the primary determinant in the efficiency of converting captured carbon dioxide into carbon monoxide.
“This is not a technology for carbon removal but rather for carbon recycling, enabling us to reuse carbon dioxide while decreasing associated emissions,” states Gallant. “The ultimate goal is to use electrochemical systems to enable mineralization and permanent carbon dioxide storage—a true removal technology. Our current understanding is a stepping stone toward that long-term vision.”
Reference: “Uncovering the Active Species in Amine-Mediated CO2 Reduction to CO on Ag” by Graham Leverick, Elizabeth M. Bernhardt, Aisyah Ilyani Ismail, Jun Hui Law, A. Arifutzzaman, Mohamed Kheireddine Aroua, and Betar M. Gallant*, 5 September 2023, ACS Catalysis.
DOI: 10.1021/acscatal.3c02500
The research is financially supported by Sunway University in Malaysia.
Frequently Asked Questions (FAQs) about Electrochemical Carbon Capture and Conversion
What is the main focus of the MIT research on carbon capture and conversion?
The research concentrates on an energy-efficient electrochemical process that can both capture and convert carbon dioxide (CO2) in a single step. The method has the potential to significantly reduce carbon emissions from industries that are hard to decarbonize, such as steel and cement production.
How is the new method different from existing technologies?
Current technologies for capturing and converting CO2 operate as two separate, energy-intensive processes. The MIT research aims to integrate these into one system that is more energy-efficient and could potentially be powered by renewable energy sources.
What industries could benefit most from this technology?
Industries like steel, cement, and chemical manufacturing that are particularly hard to decarbonize could benefit the most. These sectors inherently rely on the use of carbon and fossil fuels, making it challenging to reduce their emissions.
What were the key findings in the ACS Catalysis journal?
The study revealed the hidden mechanisms by which carbon dioxide can be both captured and converted through a single electrochemical process. The efficiency of the process was found to be dependent on the partial pressure of carbon dioxide; the purer the CO2 that makes contact with the electrode, the more efficiently it can be captured and converted.
Who are the main contributors to this research?
The study’s MIT co-authors are lead author and postdoc Graham Leverick and graduate student Elizabeth Bernhardt. Other contributors include Aisyah Illyani Ismail, Jun Hui Law, Arif Arifutzzaman, and Mohamed Kheireddine Aroua of Sunway University in Malaysia.
What are the long-term implications of this research?
The long-term implications include the potential for a renewable energy-powered system that efficiently captures and converts CO2. This could help in managing carbon emissions from industrial processes, especially those with no obvious renewable alternatives, and pave the way for future removal technologies.
Is this technology ready for industrial application?
The technology is still in the experimental stage. Although the researchers have demonstrated its feasibility, more studies and optimizations are needed before it can be deployed on an industrial scale.
Who funded the research?
The research is supported by Sunway University in Malaysia.
What is the role of the electrode in this process?
The electrode attracts CO2 released from a sorbent and converts it into a reduced, reusable form. This process is energy-efficient and could potentially run on renewable energy sources.
Are there any limitations to this technology?
The system is likely not suitable for capturing and converting carbon emissions directly from the air due to the requirement for highly concentrated emissions. It is better suited for industrial processes that produce concentrated CO2 emissions.
More about Electrochemical Carbon Capture and Conversion
- MIT News Article on Electrochemical Carbon Capture
- ACS Catalysis Journal Publication
- Sunway University Research Support
- Overview of Carbon Capture Technologies
- Challenges in Decarbonizing the Steel and Cement Industries
- Renewable Energy and Carbon Capture: An Integrated Approach
